HDD SSD DOCKING STATION 2x USB CARD READER

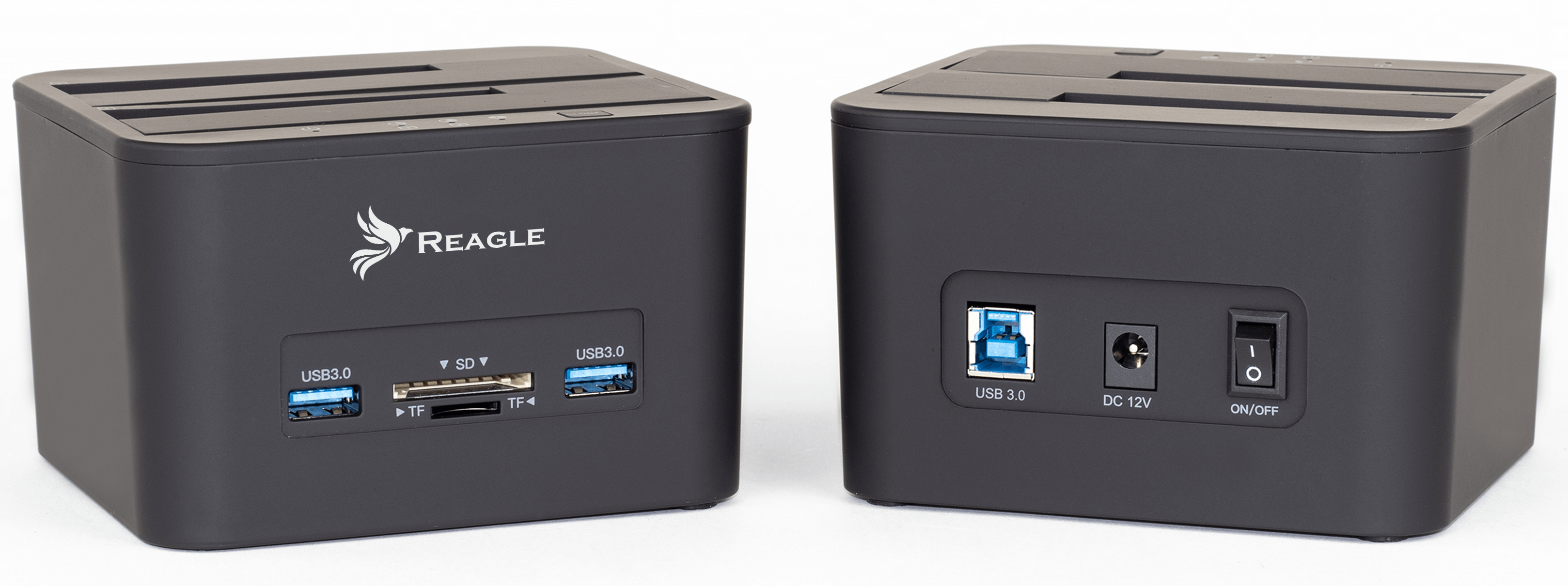

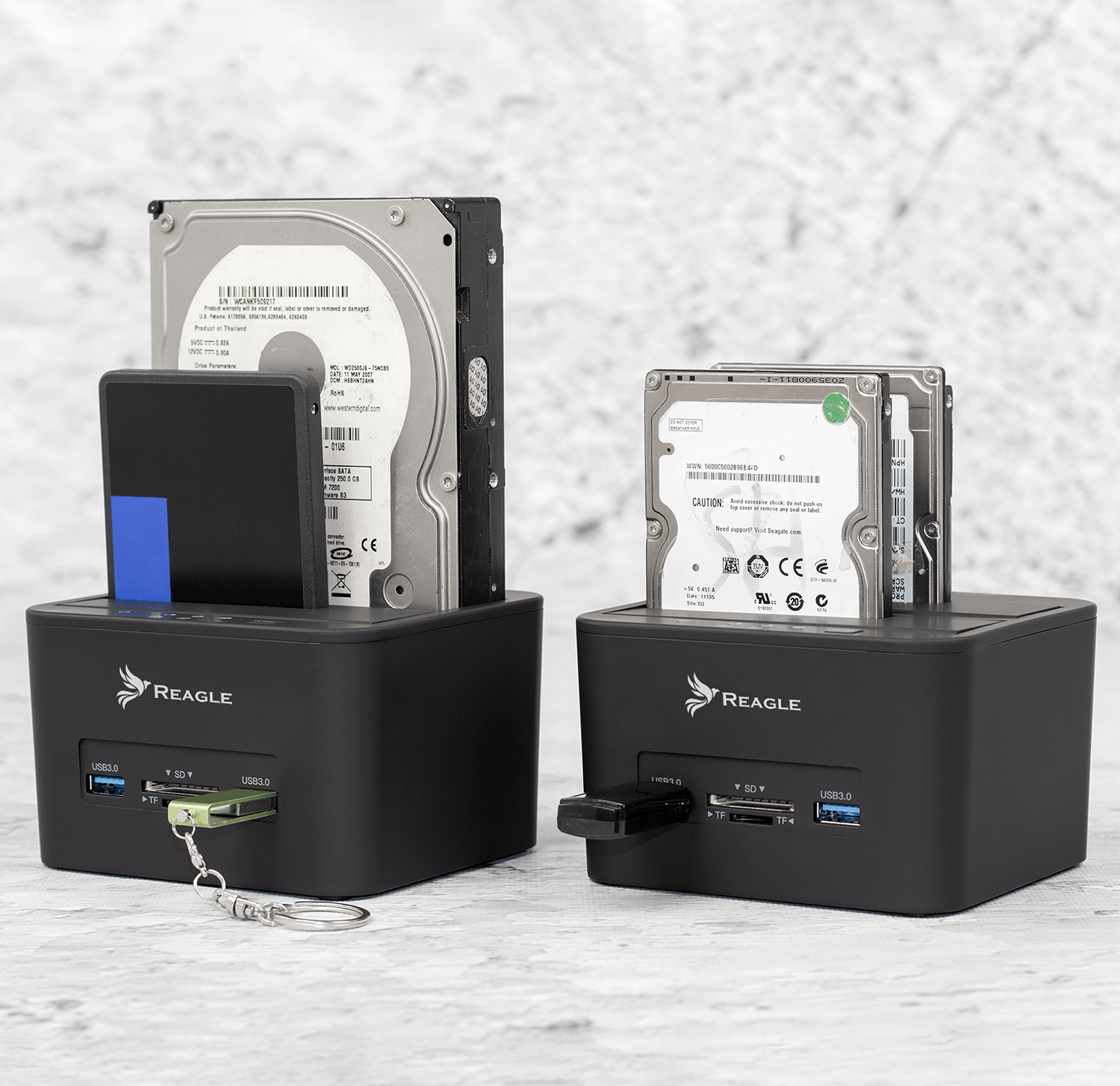

The RDOC72 from Reagle is a docking station for two HDD and SDD drives with card reader and USB ports.

Key features:

• 4-in-1 - disk data reading, disk cloning, USB ports reading and transmission, card reader
• Supports 16TB drives (maximum 32TB, i.e. 2 x 16TB)
• Supports 2.5" and 3.5 " SATA I/II/III drives
• Compatible with: Windows, Mac OS
• SD and TF card readers support cards up to a maximum capacity of 2 TB
• 2 USB ports on the front for easy connection of additional memory
• Offline diskcloning
• Access to data on drives when connected to a PC
• Data transfer rate up to 5 Gb/s
• 12V 3A power supply
• Sleek and compact enclosure takes up minimal desk space

Easy backup

The Dual Bay docking station offers easy access to 2.5" and 3.5" SATA I/II/III SSD HDDs. You don't have to worry about lack of storage space any more, as the Reagle docking station supports hard drives up to 16 TB. It is ideal for data backup and processing, formatting or file transfer.

Offline cloning function

The Reagle hard disk docking station can be used to clone an existing hard disk without connecting it to a computer or simply as an external storage for transferring data between the hard disk and the computer.

Note: The destination drive must be larger/equal to the source drive!

Fast and easy to use

The drive features the SuperSpeed USB 3.2 Gen 1 standard, backwards compatible with USB 2.0/1.1. This speed ensures faster transfer rates of up to 70% faster reading and 40% faster writing. Mounting the drive is quick and easy - you don't need extra tools to do it. Thanks to hot-swapping technology, you can connect and disconnect devices while the power is on.

The drive is additionally equipped with two USB-A ports and SD and TF card readers for cards with a maximum capacity of 2 TB and data transfer rates of up to 480 Mb/s. This allows you to transfer high-resolution photos and videos easily and conveniently. A highly efficient, stable and reliable power supply (DC 12V, 3A) will ensure a constant supply of energy.

Disk cloning instructions:

1. Before cloning, back up the files on the target hard drive. All files on the target hard drive will be overwritten during offline cloning.
2. To avoid data loss, do not remove or insert drives while one of them is in the docking station. Turn off the docking station before removing the drive.
3. Read the user manual carefully before using the cloning function.
4. Ensure that the power switch on the rear panel is in the OFF position and is properly connected.
5. Insert both hard disks and then identify the source and target disks. Note: The target disk must be larger/equal to the source disk!
6. Ensure that the USB cable is disconnected from the computer during cloning.
7. Connect the power supply and switch on the power.
8. Press the "Clone" button for 3 seconds, the LED indicator will light up. Then quickly press the offline clone button and the offline clone operation will start. Each LED represents 25% completion. When the offline cloning operation is complete, all LEDs will be lit continuously.
9. Finally, switch off the device.

Specification:

• Model: RDOC72
• Disk support: SATA I/II/III 2.5" and 3.5" HDDs
• Maximum drive size: up to 16 TB
• Ports: 2 x SATA, 2 x USB-A, 1 x SD card reader, 1 x TF card reader
• USB standard: SuperSpeed USB 3.2 Gen 1
• Data transfer rate: up to 5 Gb/s
• Maximum data transfer rate for card reader: 480 Mbps
• USB backward compatibility: yes
• Disk mounting: without additional tools
• Offline cloning: yes
• Colour: black
• Plug and play: yes
• Compatibility with systems: Windows XP / Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10, Mac IOS 10.4 to 10.11
• Power supply: 12V 3A
• USB-A - USB-B cable length: 80 cm
• Power supply cable length: 120 cm
• Dimensions: 103.5 mm x 113.5 mm x 69.5 mm
• Included: 1 x docking station, 1 x power adapter, 1 x USB cable, 1 x user manual
